Bitte wählen Sie aus der folgenden Warengruppe die Artikel aus, die Sie bestellen möchten. Tragen Sie einfach die gewünschte Bestellmenge in das dazugehörige Eingabefeld ein. Um den Artikel in den Einkaufskorb zu legen, klicken Sie bitte auf den 'Bestellen' Knopf.

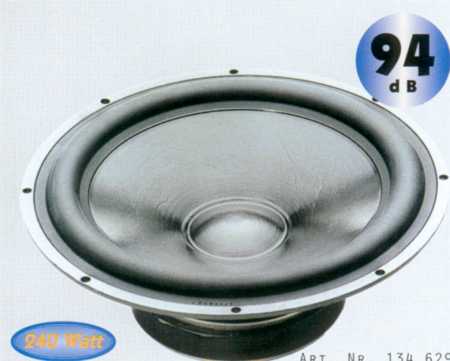

25 cm Baßlautsprecher der absoluten Spitzenklasse. Hervorragendes Impulsverhalten durch getränkte Hartpapiermembran und sehr starkem Antrieb. Sehr guter Wirkungsgrad. Anwendungsbereich: Kombinationen mit höherem Wirkungsgrad. Einsatz bis 1000 Hz. Technische Daten Impedanz: 8 Ohm; Nennbelastbarkeit: 150 Watt; Musikbelastbarkeit: 240 Watt; Resonanzfrequenz (fs): 27 Hz; Gleichstromwiderstand (Re): 6,0 Ohm; Kenschalldruck (1W, 1m): 94 dB; Luftspalthöhe: 6,0 mm; Schwingspule (D; Länge): 39 mm; 14 mm; Kraftfaktor (F/I): 10.90 N/A; Schwingspuleninduktivität: 1,20 mH; Effektive Membranfläche (cm2): 346; Bewegte Masse incl. Luftlast: 41,0 g; Äquivalentvolumen (Vas): 135,0 dm3; Aufhängungsnachgiebigkeit: 0,48 mm/N; Elektrische Güte (Qes): 0,32; Mechanische Güte (Qms): 1,90; Freiluftgesamtgüte (Qts): 0,27.
22 cm Baßlautsprecher mit sehr steifer Membran aus Aluminium und Phase Plug. Mit hinterlüfteter Zentrierspinne. Dadurch ideales Ausschwingverhalten. Hoch belastbar. Einsatzbereich bis 1000 Hz Technische Daten Impedanz: 8 Ohm Belastbarkeit (Dauer/Kurz): 125/300 Watt; Resonanzfrequenz (fs): 23 Hz Gleichstromwiderstand (Re): 6,1 Ohm Kenschalldruck (1W, 1m): 86 dB Kraftfaktor (F/I): 10,7 N/A Schwingspuleninduktivität: 3,70 mH Effektive Membranfläche (cm2): 220 Bewegte Masse incl. Luftlast: 43,0 g Äquivalentvolumen (Vas): 72,0 dm3 Aufhängungsnachgiebigkeit: 1,10 mm/N Elektrische Güte (Qes): 0,35 Mechanische Güte (Qms): 3,62 Freiluftgesamtgüte (Qts): 0,32 Frequenzbereich: 20 - 1000 Hz Luftspalthöhe: 6,0 mm Schwingspule (D; Länge): 39 mm; 20 mm Lineare Auslenkung: +/- 7,0 mm
26 cm Baßlautsprecher mit sehr steifer Membran aus Aluminium und Phase Plug. Mit hinterlüfteter Zentrierspinne. Dadurch ideales Ausschwingverhalten. Hoch belastbar. Technische Daten Impedanz: 8 Ohm Belastbarkeit (Dauer/Kurz): 125/300 Watt; Resonanzfrequenz (fs): 20 Hz Gleichstromwiderstand (Re): 6,3 Ohm Kenschalldruck (1W, 1m): 87 dB Kraftfaktor (F/I): 10,7 N/A Schwingspuleninduktivität: 1,48 mH Effektive Membranfläche (cm2): 330 Bewegte Masse incl. Luftlast: 58,0 g Äquivalentvolumen (Vas): 166,0 dm3 Aufhängungsnachgiebigkeit: 1,10 mm/N Elektrische Güte (Qes): 0,40 Mechanische Güte (Qms): 2,30 Freiluftgesamtgüte (Qts): 0,34 Frequenzbereich: 20 - 1000 Hz Luftspalthöhe: 6,0 mm Schwingspule (D; Länge): 51 mm; 20 mm Lineare Auslenkung: +/- 7,0 mm
SEAS LAUTSPRECHER CA22RNX H1288 Technische Daten: Bitte Artikelzeile anklicken!
SEAS LAUTSPRECHER CA26RFX H1305 Technische Daten: Bitte Artikelzeile anklicken!
SEAS LAUTSPRECHER CA26RE4X H1316 Technische Daten: Bitte Artikelzeile anklicken!
SEAS LAUTSPRECHER L 22 RNX/P H1252
SEAS LAUTSPRECHER CD22RN4X H1192-8, 22 CM TIEF-/MITTELTTÖNER Double treated, hard paper cone designed to be very stiff without losing the damping capability, together with a natural rubber surround produces a well behaved roll off characteristic and reduces potential resonance problems. Large magnet system with bumped back plate together with a long 4-layer voice coil gives long linear excursion. The magnet system has a T-shaped cross section of the pole piece for low modulation distortion. Extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonances.
10\" Seas Subwoofer L26ROY D1001 Extremely stiff and rigid aluminium cone gives tremendous bass precision. The cone and the long throw low loss rubber surround show no sign of the familiar cone edge resonance and distortion associated with soft cones. Lead-out wires symetrically stitched to the spider to avoid resonances. Total suspension designed to assure stability for extreme excursions. 2-layer, extremely long, high temperature voice coil wound on an glassfi ber voice coil former gives a high power handling capacity. Cu-cap around the pole pieces reduce non linear and modulation distortion and increase overload margin. Extra large magnet system provides high effi ciency and low Q. Extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound refl ection, air fl ow noise and cavity resonance to a minimum. Merkmale Typ Subwoofer Korbmaß (Zoll) 10 Imp. (Zn/ohm) 4 Freq.(Hz) 20-1000 Music (W) 250 Nominal (W) 500 SPL (1W/1M) 88,00 VC (d) 56 VC (h) 38 Hag (mm) 10,00 Xmax +- (mm) 28,00 Max.Mech..Auslenkung+-(mm) 56,00 Flussdichte (T) 01,20 Re (Ohm) 03,10 VC (Le/mH) 00,5300 BxL/NA (F/I) 12,00 fs 22 Mms/g 107 Luftlast(g) 04,00 Cms (mm/N) 00,50 Mech.Widerstand(Ns/m) 03,70 Sd cm2 363 VAS 087,00 QMS 04,14 QES 00,33 QTS 00,31 Membranmaterial Aluminium Sicke Material Gummi Korb Material Aluminium Außendurchmesser (mm) 269,00 Einbaulochmaß (mm) 0236,00 Einbautiefe (mm) 0141,00 Hersteller / Marke Seas Prestige
10\" Seas Subwoofer L26ROY 4 Ohm Extremely stiff and rigid aluminium cone gives tremendous bass precision. The cone and the long throw low loss rubber surround show no sign of the familiar cone edge resonance and distortion associated with soft cones. Lead-out wires symetrically stitched to the spider to avoid resonances. Total suspension designed to assure stability for extreme excursions. 2-layer, extremely long, high temperature voice coil wound on an glassfi ber voice coil former gives a high power handling capacity. Cu-cap around the pole pieces reduce non linear and modulation distortion and increase overload margin. Extra large magnet system provides high effi ciency and low Q. Extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound refl ection, air fl ow noise and cavity resonance to a minimum. Merkmale Typ Subwoofer Korbmaß (Zoll) 10 Imp. (Zn/ohm) 4 Freq.(Hz) 20-1000 Music (W) 250 Nominal (W) 500 SPL (1W/1M) 88,00 VC (d) 56 VC (h) 38 Hag (mm) 10,00 Xmax +- (mm) 28,00 Max.Mech..Auslenkung+-(mm) 56,00 Flussdichte (T) 01,20 Re (Ohm) 03,10 VC (Le/mH) 00,5300 BxL/NA (F/I) 12,00 fs 22 Mms/g 107 Luftlast(g) 04,00 Cms (mm/N) 00,50 Mech.Widerstand(Ns/m) 03,70 Sd cm2 363 VAS 087,00 QMS 04,14 QES 00,33 QTS 00,31 Membranmaterial Aluminium Sicke Material Gummi Korb Material Aluminium Außendurchmesser (mm) 269,00 Einbaulochmaß (mm) 0236,00 Einbautiefe (mm) 0141,00 Hersteller / Marke Seas Prestige
Seas Lotus Lautsprecher SW300/1 4 ohm
Seas Lotus reference woofer RW220
Seas Woofer A classical paper cone and matching natural rubber surround produce a smooth response and reduce potential resonance problems. A four layer voice coil provides a well behaved roll off characteristic. The magnet system has a T-shaped cross section of the pole piece for low modulation distortion. Extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum. Merkmale Typ Tiefmittelton Imp. (Zn/ohm) 8 Freq.(Hz) 30-15000 Music (W) 300 Nominal (W) 80 SPL (1W/1M) 89,00 VC (d) 39 VC (h) 14 Hag (mm) 6,00 Xmax +- (mm) 8,00 Max.Mech..Auslenkung+-(mm) 20,00 Flussdichte (T) ,90 Magnetgewicht(Kg) ,42 Gesamtgew. (Kg) 2,15 Re (Ohm) 6,10 LE (VC/mH) 3,3700 BL (NA) (F/I) 9,60 fs 25 Mms(g) 39,4 Luftlast(g) 3,80 Cms (mm/N) ,90 Mech.Widerstand(Ns/m) 1,29 Sd (cm2) 350,00 VAS 161,00 QMS 5,28 QES ,45 QTS ,41 Membranmaterial Papier Sicke Material Gummi Korb Material Aluminium Außendurchmesser (mm) 269,00 Einbaulochmaß (mm) 232,00 Einbautiefe (mm) 100,50 Hersteller / Marke Seas Prestige
